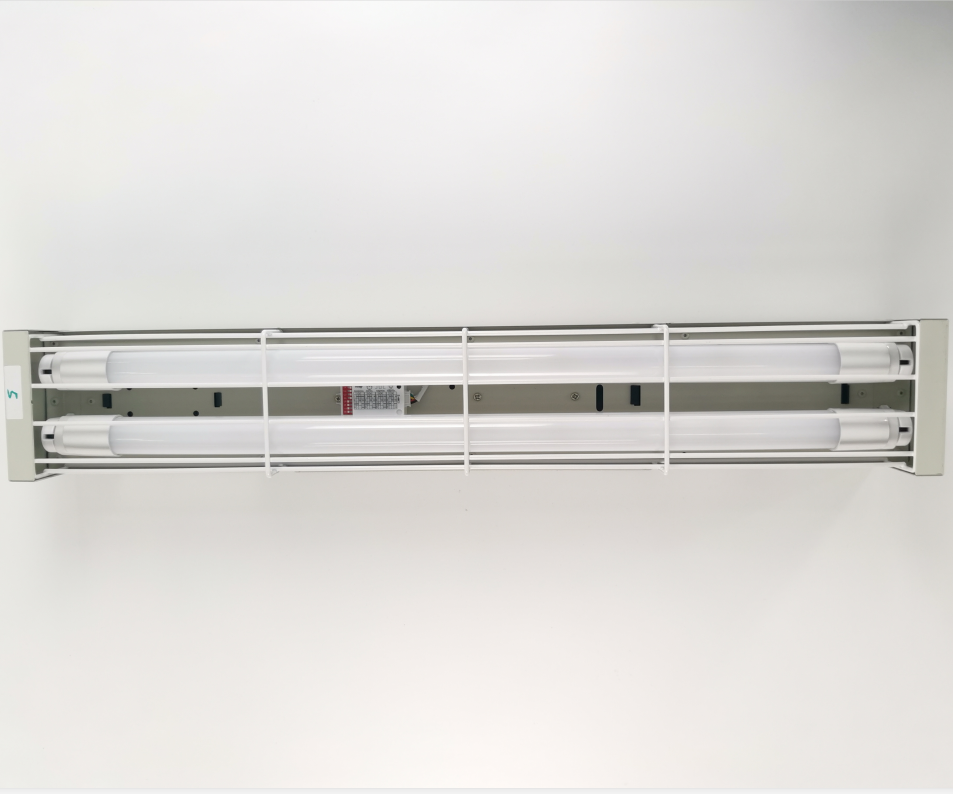

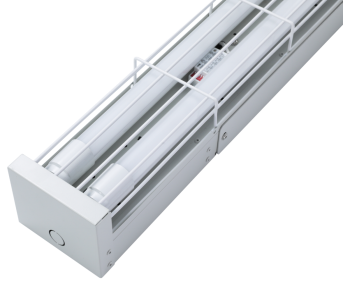

Emergency sensor LED tube batten fixture IP20
◆0.5mm thickness steel housing with white coating IP20 rate
◆High transmittance(88%) PC diffuser
◆Small Separate fixed plate with Huge terminal block and safety hookers for easy installation
◆Innovation design for sliding installation of  housing body without wiringeasy maintenance
◆Easy openable backside design for quick  maintenance
◆2FT,4FT,5FT and Single tube or Double tube option
◆Single end power in,PC+AL heat sink led tube,more safety
◆Bridge wiring in fitting,no need consider power direction of tube
◆Smart inverter for multi-function (option)
◆5.8G HF microwave Sensor dimming function  (option)
◆Emergency function,battery with special housing for quick maintenance
◆Approved by CE SAA and C-Tick (RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

IP20 sensor LED tube batten light


LED tube batten light with wire guard grille and high strength Iron base. Non-maintained operation. Adopt slide&connect mounting bracket for easy installation. Standard version, microwave sensor version, emergency version and emergency sensor version for optional. Optional microwave sensor dimming available to delivery up to 89% energy savings. Emergency battery with clip type housing, toolless design ,easy installation and replacement. This light good for car park , warehouse , stairwells and industrial buildings...


Product video



Product details


Easy openable backside design for quick  maintenance
3000 mAh Lithium battery,emergency time >3 hours.Special housing for quick battery replacement

led batten light


drvier and block.png

LED dirver and huge terminal block

◆Clip-fixed Driver,easy replacement and maintenance

◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%


Product application

led batten application




 Specification

                                                   led tube batten.png

Packing Specification

led batten light.png
