IP65 sensor LED vapor tight fixture
◆High-grade aluminum heatsink and anti-UV PC housing
◆IP66 waterproof rating and IK10 high intensity
◆High transmittance(88%) PC diffuser
◆130lm/W LED chip as the light source(approval by LM-80)
◆high efficency,flicker free driver
◆Surface mounted/hanging installation
◆End cap knob type,quick wiring terminal block for easy installation
◆Sensor dimming function with remote setting
◆Linkable connection function(option)
◆Approved by CE ROHS SAA and C-Tick (RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

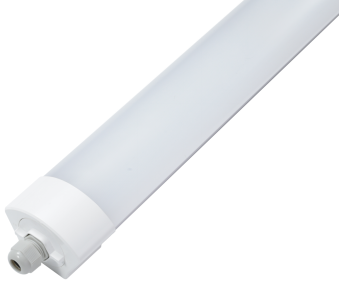

IP65 sensor LED vapor tight fixture

The IP66 Quick wiring LED vapor tight batten light,adopts innovative knob for quick installation, easy for connecting power supply with quick terminal block,no need to use tools and screws.Adopt high brightness SMD2835 light source,optimized optical design  on diffuser and flicker-free driver,which make higher lumen output and light distribution even and soft,no glare,no flicker. This vapor tight light can be with sensor dimming function.The LED weatherproof sensor dimming luminaire widely used in underground parking lots,workshops,warehouses,stairwell,corridor, passageway,Rail-way/Metro station,tunnel,venues, ships and Other basements.


Product video




Product details


 ◆Adopt high diffusion PC cover

 ◆PC cover contains Anti-UV material


 ◆High transmittance(86%) PC diffuser

 ◆High-grade aluminum heatsink

◆High brightness LED chips and color rendering index

◆SMD2835 LED chip as light source(approval by LM80)

◆Low light degration,high CRI>83


◆High luminous efficiency 110-130lm/w



led vapor tight fixture details.png




End cap knob type,quick wiring terminal block for easy installation


led vapor tight fixture.jpg


 Specification
led vapor tight fixture.png




Packing Specification
led vapor tight fixture.png
led vapor tight.png
