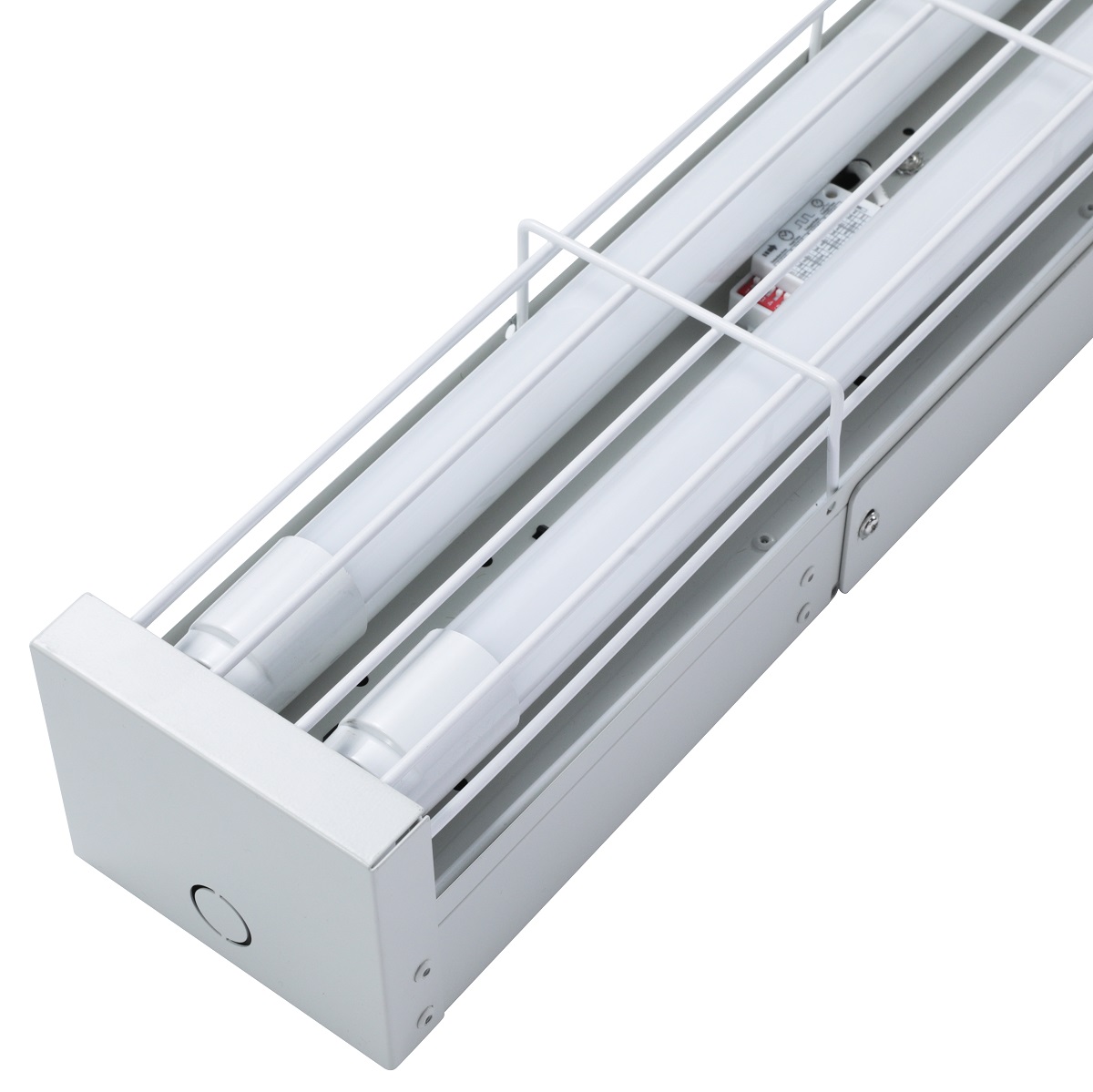

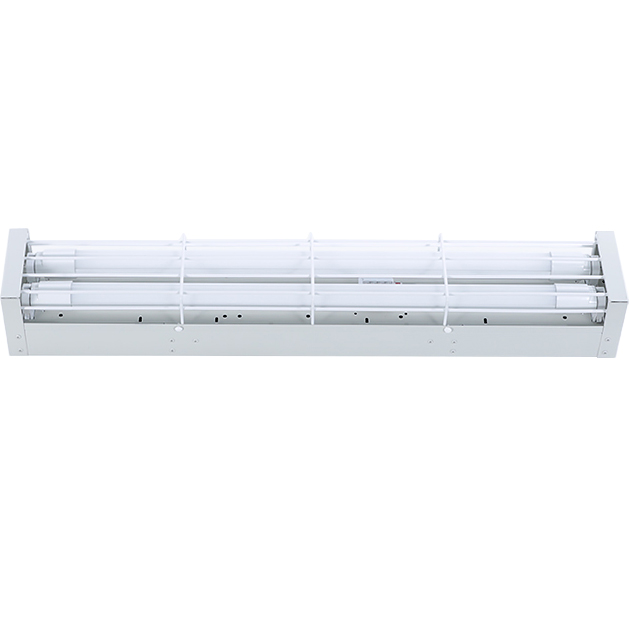

IP20 wire guard LED tube batten light
◆0.5mm thickness steel housing with white coating
◆Steel wire guard for protection IP20 rate
◆Small Separate fixed plate with Huge terminal block and safety hookers for easy installation
◆Innovation design for sliding installation of  housing body without wiringeasy maintenance
◆Easy openable backside design for quick  maintenance.
◆2FT,4FT,5FT and Single tube or Double tube option
◆Single end power in,PC+AL heat sink led tube, more safety
◆Bridge wiring in fitting, no need consider power direction of tube
◆Smart inverter for multi-function (option)
◆5.8G HF microwave Sensor dimming function  (option)
◆Emergency function,battery with special housing for quick maintenance (option)
◆Approved by CE SAA and C-Tick (RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

LED tube batten light


led tube batten◆0.5mm thickness steel housing with white coating

◆Steel wire guard for protection IP20 rate

◆Small Separate fixed plate with Huge terminal block and safety hookers for easy installation

◆Innovation design for sliding installation of  housing body without wiringeasy maintenance

Easy openable backside design for quick  maintenance

◆2FT,4FT,5FT and Single tube or Double tube option

◆Single end power in,PC+AL heat sink led tube, more safety

◆Bridge wiring in fitting, no need consider power direction of tube

◆Smart inverter for multi-function (option)

◆5.8G HF microwave Sensor dimming function  (option)

◆Emergency function,battery with special housing for quick maintenance (option)

◆Approved by CE SAA and C-Tick (RCM)

◆3 years warranty



 Easy openable backside design for quick  maintenance

led tube batten



LED chip.jpg




                  LED chips

                  ◆High brightness LED chips and color rendering index

            ◆SMD2835 LED chip as light source(approval by LM80)
            ◆Low light degration, high CRI>83

            ◆High luminous efficiency 110-130lm/w






drvier and block.png


LED dirver and huge terminal block

◆Clip-fixed Driver,easy replacement and maintenance

◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%

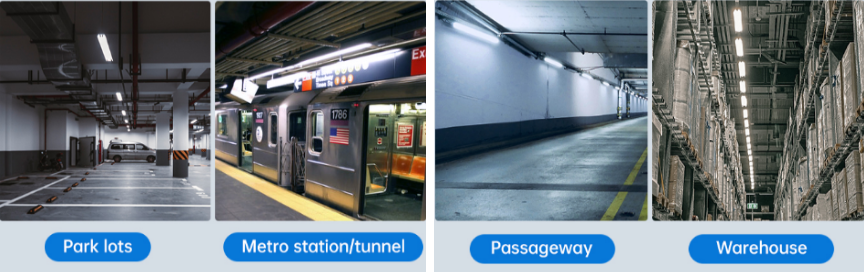

Product application

led tube batten application

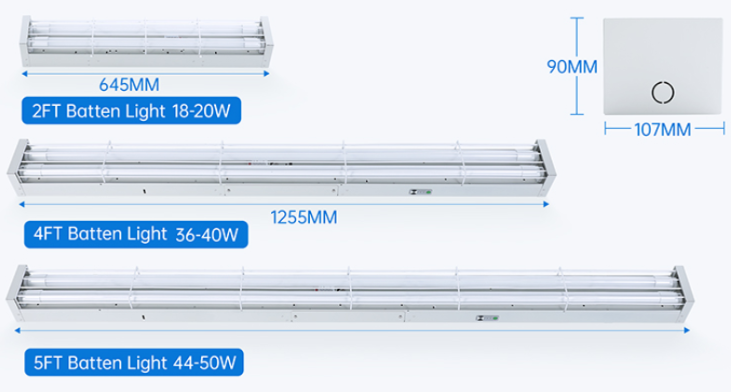

 Specification

                                                   led tube batten.png

Packing Specification

led tube batten.png
