IP20 Emergency PC diffuser LED tube batten fixture
◆0.5mm thickness steel housing with white coating IP20 rate
◆High transmittance(88%) PC diffuser
◆Small Separate fixed plate with Huge terminal block and safety hookers for easy installation
◆Innovation design for sliding installation of  housing body without wiringeasy maintenance
◆Easy openable backside design for quick  maintenance
◆2FT,4FT,5FT and Single tube or Double tube option
◆Single end power in,PC+AL heat sink led tube,more safety
◆Bridge wiring in fitting,no need consider power direction of tube
◆Smart inverter for multi-function (option)
◆5.8G HF microwave Sensor dimming function  (option)
◆Emergency function,battery with special housing for quick maintenance
◆Approved by CE SAA and C-Tick (RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

LED tube batten light


edf59180180893a4b8fe1805fe2dbd4.png◆0.5mm thickness steel housing with white coating

◆High transmittance(88%) PC diffuser
◆SMD2835 LED chip,CRI>83 110-130lm/w

◆Small Separate fixed plate with Huge terminal block and safety hookers for easy installation

◆Innovation design for sliding installation of  housing body without wiringeasy maintenance

Easy openable backside design for quick  maintenance

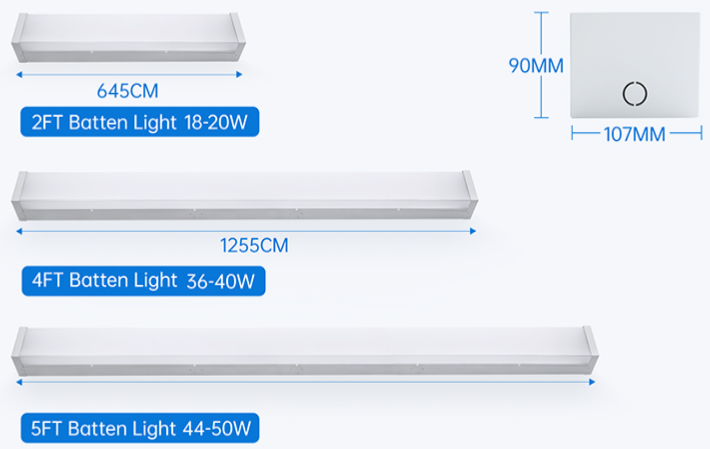

◆2FT,4FT,5FT and Single tube or Double tube option

◆Single end power in,PC+AL heat sink led tube, more safety

◆Bridge wiring in fitting, no need consider power direction of tube

◆Smart inverter for multi-function (option)

◆5.8G HF microwave Sensor dimming function  (option)

◆Emergency function,battery with special housing for quick maintenance

◆Approved by CE SAA and C-Tick (RCM)

◆3 years warranty

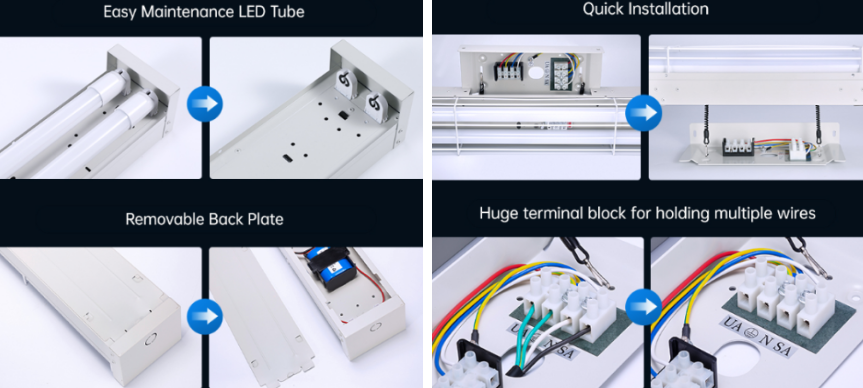

 Easy openable backside design for quick  maintenance

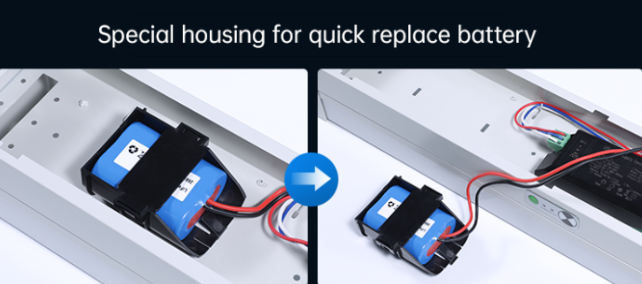

3000 mAh Lithium battery,emergency time >3 hours.Special housing for quick battery replacement


drvier and block.png

LED dirver and huge terminal block

◆Clip-fixed Driver,easy replacement and maintenance

◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%



Product application





 Specification


Packing Specification
