IP65 Emergency LED batten light
◆Adopt high-grade PC base and PC cover fitting
◆Good quality seal for better waterproof,IP65 protection rate
◆Surface mounted or hanging installation option
◆Using high brightness SMD2835 led chips as light source
◆High luminous efficiency 110-130 lm/w
◆Adopt high quality LED constant driver
◆Emergency function,battery with special housing
◆Available in 2ft 18-20W,4 ft 36-40W and 5ft 44-50W
◆Approved by CE ROHS SAA and C-tick(RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

LED weatherproof batten light Vapor Tight Linear Fixture


led tri-proof light.jpg

            ◆High-grade PC base and PC diffuser IP65 /IK10 Rated

            ◆Stainless steel/PC clips option

            ◆Huge terminal block(hole size 5.0mm) for easy wiring

            ◆Clip-fixed Driver,easy replacement and maintenance

            ◆Surface mounted or hanging installation

            ◆5.8G HF microwave Sensor dimming function(option)

            ◆Emergency function,battery with special housing (option)

            ◆Linkable connection function(option)

            ◆Approved by CE ROHS SAA and C-Tick (RCM)

            ◆3 years warranty.







 PC cover and PC base


 ◆Adopt high diffusion PC cover

 ◆PC cover contains Anti-UV material


 ◆High transmittance(86%) PC diffuser

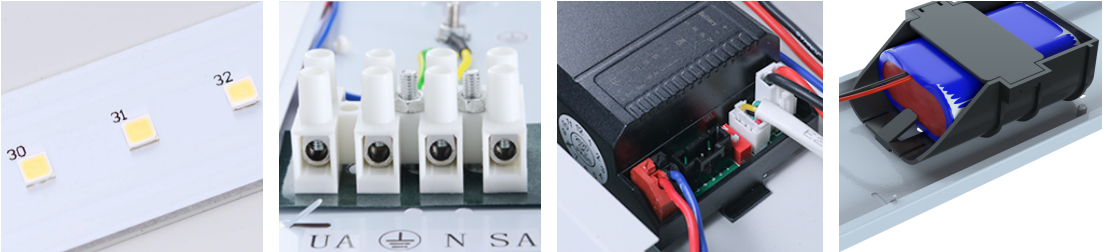

 ◆SMD2835 LED chip as light source(approval by LM80),CRI>83 110-130lm/w

photobank (2).jpg



3000 mAh Lithium battery,emergency time >3 hours.Special housing for quick battery replacement
























drvier and block.png


LED dirver and huge terminal block

◆Clip-fixed Driver,easy replacement and maintenance

◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%

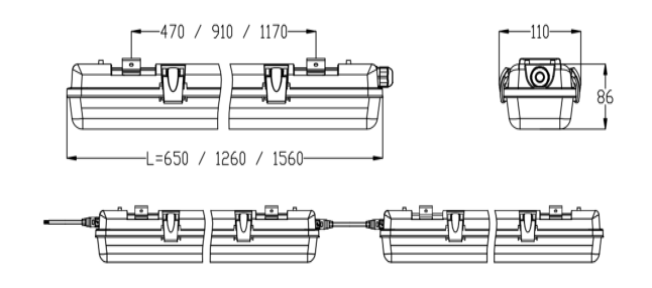

 Specification



Packing Specification
