IP65 Emergency LED tube batten light
◆Adopt high-grade ABS base and PC cover fitting,IP65 protection rate
◆Surface mounted or hanging installation option
◆Using high brightness SMD2835 led chips as T8 tube light source
◆Adopt SAA T8 LED tube with single end power input
◆Available in 2ft 2x9w; 4ft 2x12w/14w/18w; 5ft 2x22w
◆2FT,4FT,5FT and Single tube or Double tube option
◆Approved by SAA and C-tick
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

LED waterproof tube batten light Vapor Proof Linear Fixture


photobank (3).jpg

            ◆High-grade PC base and PC diffuser IP65 /IK10 Rated

            ◆Stainless steel/PC clips option

            ◆Huge terminal block(hole size 5.0mm) for easy wiring

            ◆Clip-fixed Driver,easy replacement and maintenance

            ◆Surface mounted or hanging installation

            ◆5.8G HF microwave Sensor dimming function(option)

            ◆Emergency function,battery with special housing (option)

            ◆Linkable connection function(option)

            ◆Approved by CE ROHS SAA and C-Tick (RCM)
            ◆2FT,4FT,5FT and Single tube or Double tube option

            ◆3 years warranty





 PC cover and ABS base

 ◆Adopt high diffusion PC cover

 ◆PC cover contains Anti-UV material


 ◆High transmittance(86%) PC diffuser


photobank (2).jpg

led tube batten.jpg

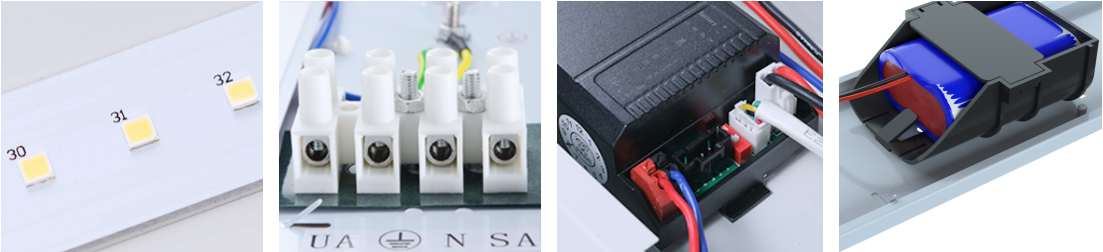

 T8 Tube

 ◆Adopt AL+PC

 ◆SMD2835 LED chip as light source(approval by LM80)

 ◆Low light degration, high CRI>83

 ◆High luminous efficiency 110-130lm/w

 CE SAA C-TICK UL approved

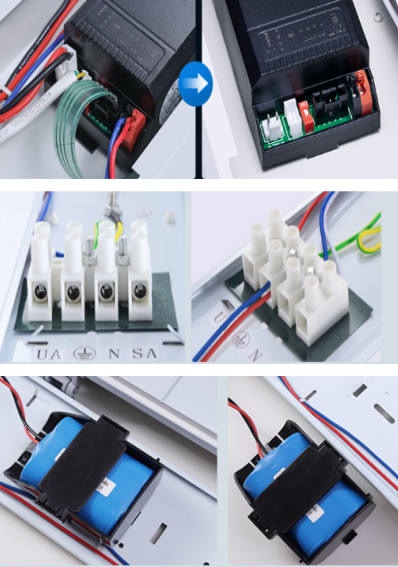

LED dirver and huge terminal block



◆Clip-fixed Driver,easy replacement and maintenance


◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%

3000 mAh Lithium battery,emergency time >3 hours.Special housing for quick battery replacement
