IP65 LED triproof tube batten light
◆Adopt high-grade ABS base and PC cover fitting,IP65 protection rate
◆Surface mounted or hanging installation option
◆Using high brightness SMD2835 led chips as T8 tube light source
◆Adopt SAA T8 LED tube with single end power input
◆Available in 2ft 2x9w; 4ft 2x12w/14w/18w; 5ft 2x22w
◆2FT,4FT,5FT and Single tube or Double tube option
◆Approved by SAA and C-tick
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

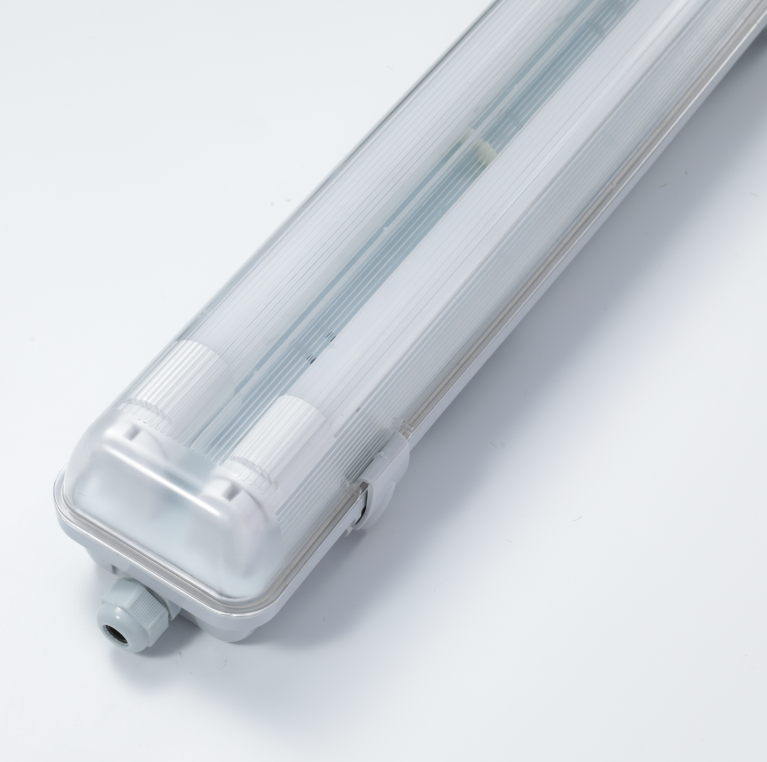

LED waterproof tube batten light Vapor Tight Linear Fixture

The triproof tube light fitting are tested to IP65 rating.Body made of high quality PC diffuser and ABS base.Both single tube and double tube version available to accept.Standard function and emergency dimming function option.Adopt high temp Lithium battery and emergency duration last for a long time.Emergency waterproof tube light widely use in car park,supermarkets,railway station,factory...

led tube batten.png

            ◆High-grade PC base and PC diffuser IP65 /IK10 Rated

            ◆Stainless steel/PC clips option

            ◆Huge terminal block(hole size 5.0mm) for easy wiring

            ◆Clip-fixed Driver,easy replacement and maintenance

            ◆Surface mounted or hanging installation

            ◆5.8G HF microwave Sensor dimming function(option)

            ◆Emergency function,battery with special housing (option)

            ◆Linkable connection function(option)

            ◆Approved by CE ROHS SAA and C-Tick (RCM)

            ◆2FT,4FT,5FT and Single tube or Double tube option
            ◆3 years warranty





 PC cover and ABS base

 ◆Adopt high diffusion PC cover

 ◆PC cover contains Anti-UV material


 ◆High transmittance(86%) PC diffuser


led tri proof batten light.jpg

led tube batten.jpg



 T8 Tube

 ◆Adopt AL+PC

 ◆SMD2835 LED chip as light source(approval by LM80)
 ◆Low light degration, high CRI>83

 ◆High luminous efficiency 110-130lm/w

 CE SAA C-TICK UL approved




LED dirver and huge terminal block

drvier and block.png

◆Clip-fixed Driver,easy replacement and maintenance

◆Plug and play connection,Isolate driver,flicker free


◆Huge terminal block(hole size 5.0mm) for easy wiring

Dual Power Setting Dip Switch :1 Luminaire can be set at full power 100% or Economy Mode 50%







Product video












 Specification

                                                   led tube.png


Packing Specification


led tube




















led tube batten.png
