IP65 LED vapor tight fixture
◆High-grade aluminum heatsink and anti-UV PC housing
◆IP66 waterproof rating and IK10 high intensity
◆High transmittance(88%) PC diffuser
◆130lm/W LED chip as the light source(approval by LM-80)
◆high efficency,flicker free driver
◆Surface mounted/hanging installation
◆End cap knob type,quick wiring terminal block for easy installation
◆Sensor dimming function with remote setting  (option)
◆Linkable connection function(option)
◆Approved by CE ROHS SAA and C-Tick (RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

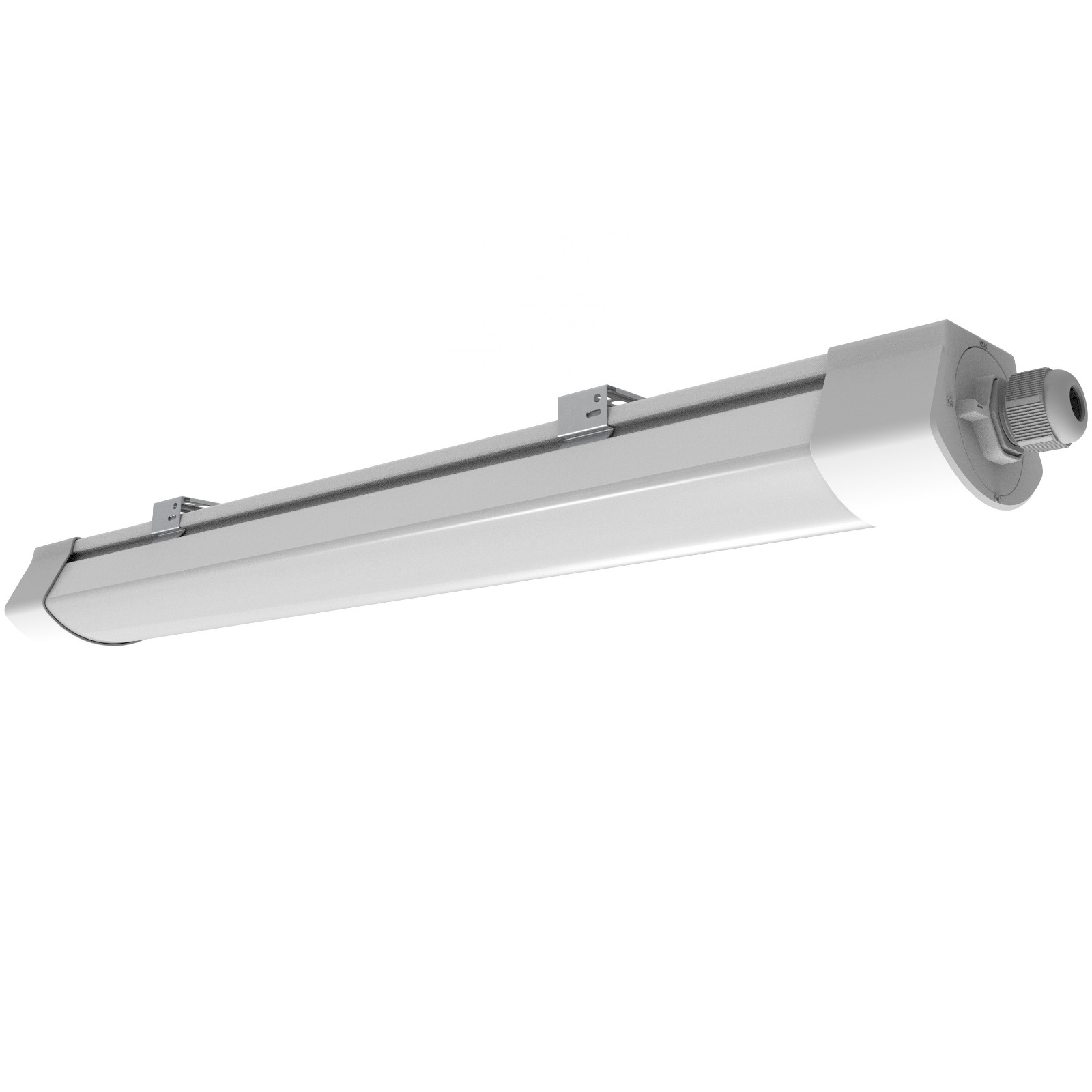

LED weatherproof batten light Vapor Tight Linear Fixture


led vapor tight fixture.jpg

       ◆High-grade aluminum heatsink and anti-UV PC housing

       ◆IP66 waterproof rating and IK10 high intensity

       ◆High transmittance(88%) PC diffuser

       ◆130lm/W LED chip as the light source(approval by LM-80)

       ◆high efficency,flicker free driver

       ◆Surface mounted/hanging installation

       ◆End cap knob type,quick wiring terminal block for easy installation

       ◆Sensor dimming function with remote setting  (option)

       ◆Linkable connection function(option)

       ◆Approved by CE ROHS SAA and C-Tick (RCM)

       ◆3 years warranty

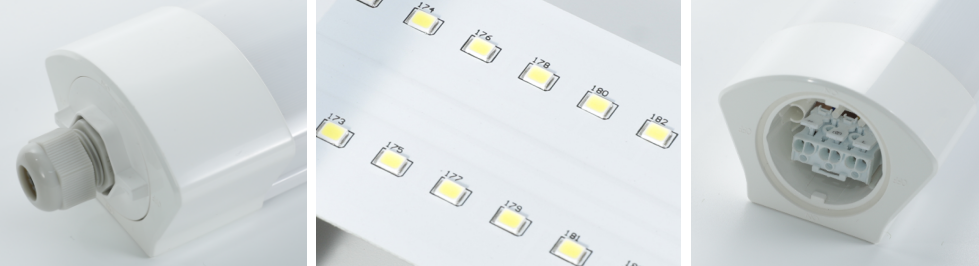

PC cover and
AL heatsink


 ◆Adopt high diffusion PC cover

 ◆PC cover contains Anti-UV material


 ◆High transmittance(86%) PC diffuser

 ◆High-grade aluminum heatsink



led vapor tight fixture details.png



LED chip.jpg


                  LED chips

                  ◆High brightness LED chips and color rendering index

            ◆SMD2835 LED chip as light source(approval by LM80)
            ◆Low light degration,high CRI>83

            ◆High luminous efficiency 110-130lm/w

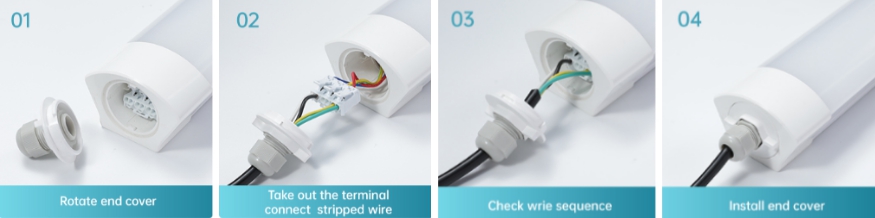

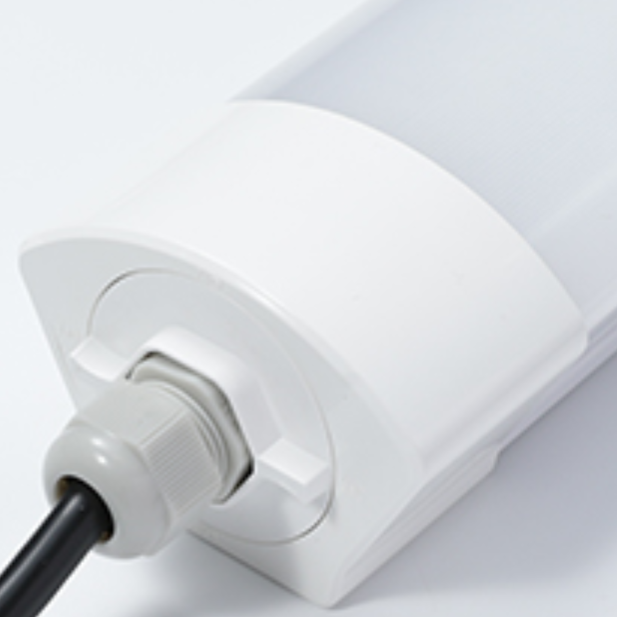

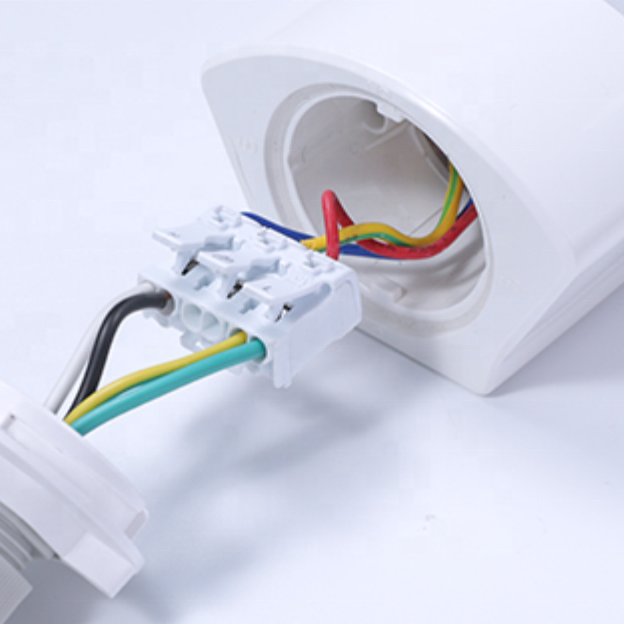

End cap knob type,quick wiring terminal block for easy installation

led vapor tight fixture.jpg

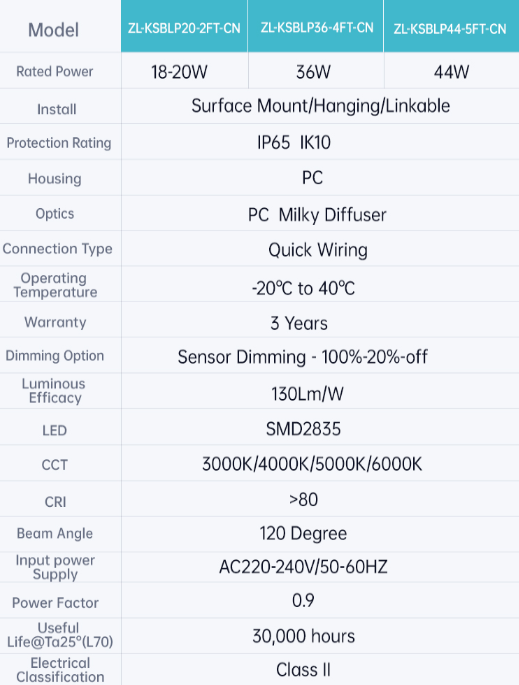

 Specification
led vapor tight fixture.png

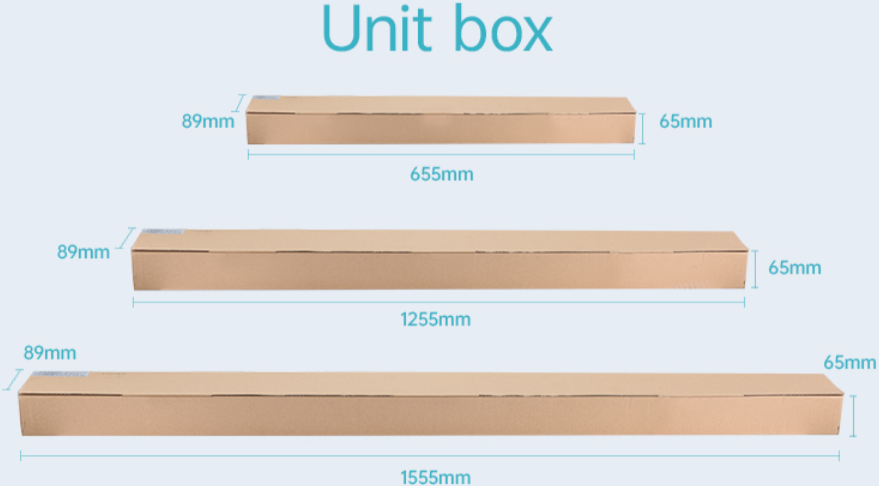

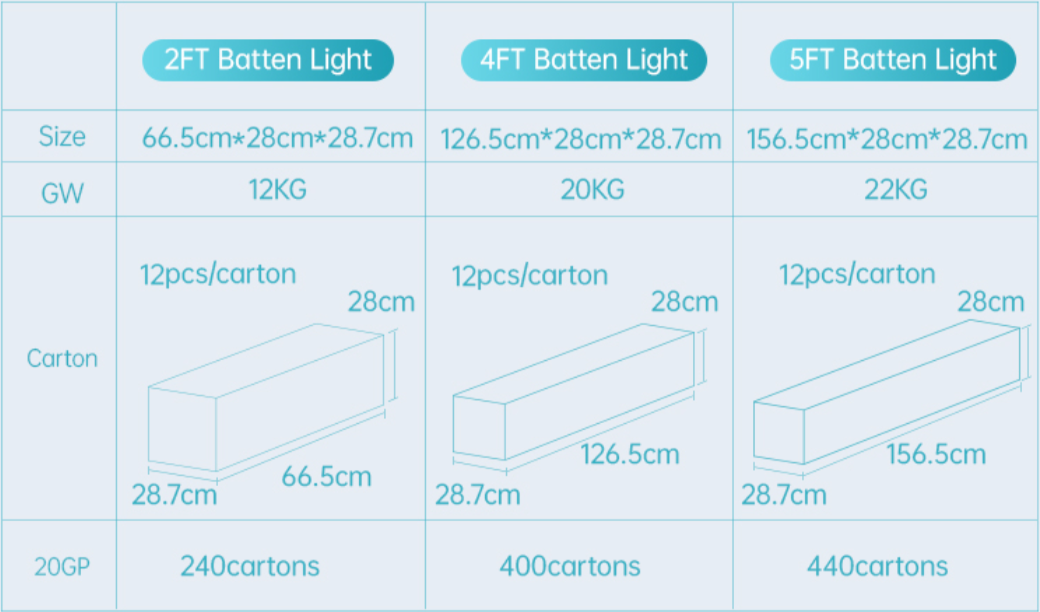

Packing Specification
led vapor tight fixture.png
led vapor tight.png
