LED emergency oyster ceiling light
◆Adopt PMMA cover and iron base

◆Surface mounted installation

◆Uising high brightness SMD2835/5630 led chips as light source

◆Adopt High Temperature Ni-Cd battery pack

◆Emergency watts 12 W

◆Emergency duration >90 mins

◆Approved by ROHS SAA and C-tick(RCM)

◆3 years warranty
  • Description
  • Product Specification
  • Package Detail
                                                                                  LED emergency oyster ceiling light

Description

This 12W LED Ceiling Light is made with high brightness Epistar LEDs, SAA driver, with less degradation and 50,000 hours lifespan, replacing the 25-30W fluorescent ceiling light. Ni-Mh or Ni-Cd battery backup can support at least 90mins emergency, 2hours or customized.

Feature

◆Adopt PMMA cover and iron base

◆Surface mounted installation

◆Uising high brightness SMD2835/5630 led chips as light source

◆Adopt High Temperature Ni-Cd battery pack

◆Emergency watts 12 W

◆Emergency duration >90 mins

◆Approved by ROHS SAA and C-tick(RCM)

◆3 years warranty

Detaial specification

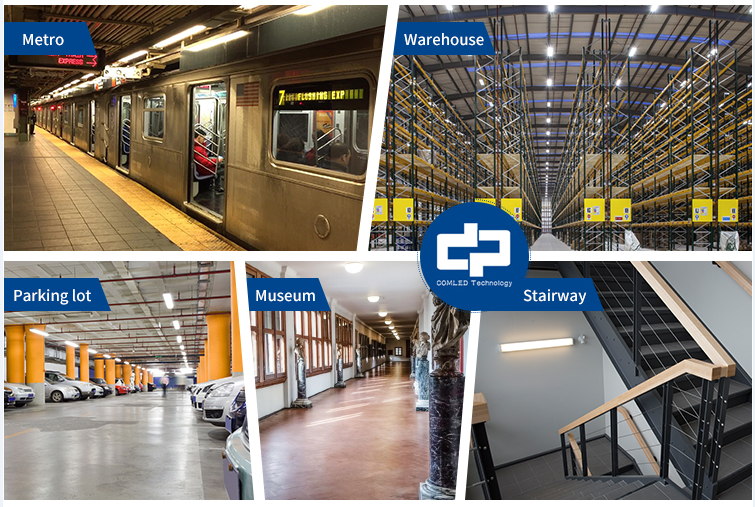

Application



Specification

Model Number: ZL-ECLP12-XW

Power Consumption: 12W

Power Factor: > 0.92

Input Voltage: AC200~240V

Frequency: 50/60Hz

Battery: Ni-MH/2.5AH Emergency Duration: >90mins, 120mins or customized

Equivalent to: 30W traditional incandescent light

Color Temperature Option: 2800-7000K

View Angle: 120°

Working Temperature: -25℃~ +40℃

CRI: >80

Flux Lumen: 800lm/12W

Lifespan: 50,000 hours    Battery Lifespan: 300-500 times of charging & recharging cycles

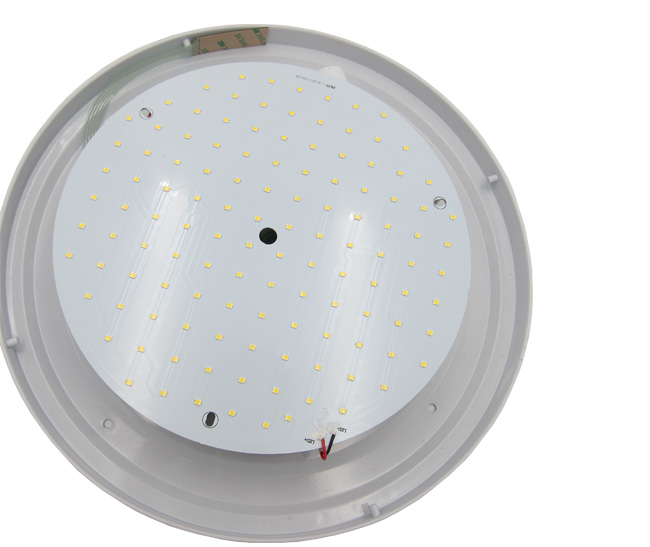

Light Sourse: 200pcs SMD2835 LEDs (Epistar)

Demension: Φ360 x 112.5 mm     Weight:  2200g

Certificates: C-Tick, SAA


Packing Specification

Box:  40x 40 x 6.5cm (1 pcs/box) (Samples need wooden box for shells)

Carton:  81x 43 x 42cm

Gross Weight:  15.52kg

Net Weight:  13.28kg

Quantity:  6pcs/carton
