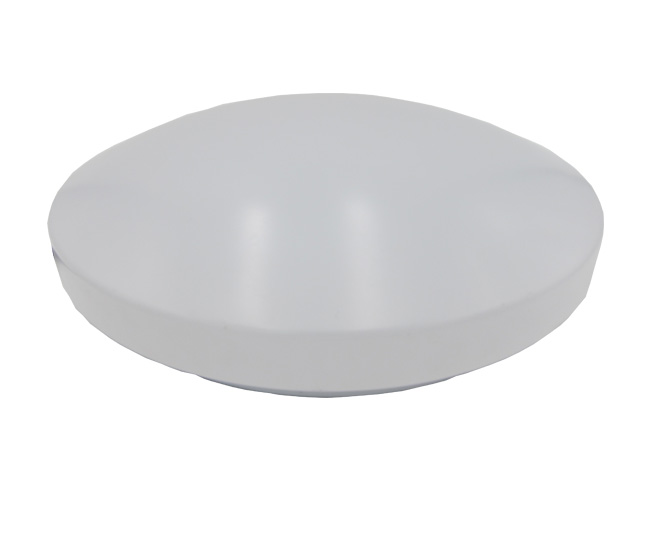

LED oyster ceiling light IP20
Feature
◆Adopt PMMA Opal diffuser and uniform illumination[均匀照射分布]
◆Surface mounted installation and large hole (5mm) of terminal block
◆Using high brightness SMD5630 led chips as light source
◆Adopt isolated SAA/CE approved driver
◆Available watt:12w/18w/20w
◆Dimming function : Sensor dimming and Light sensor detect
◆Meet SAA, C-tick and CE requirements
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

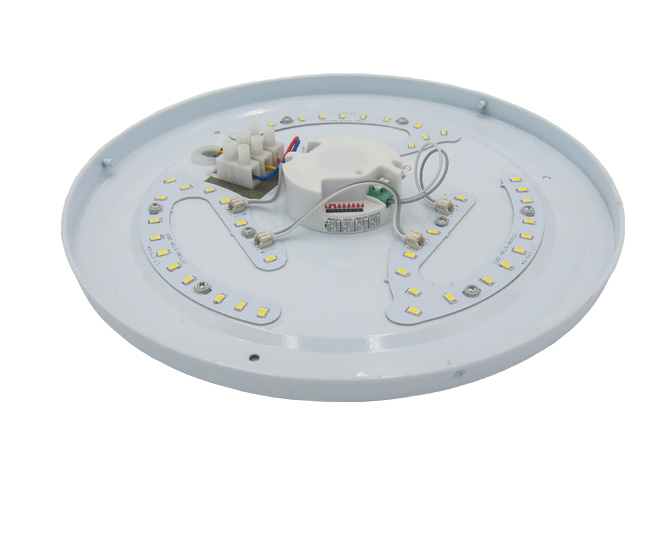

LED oyster sensor ceiling light




Description

LED Oyster Ceiling Light with Sensor is made with high brightness SMD5630, SAA driver and PMMA Opal diffuser. it works under normal supply of AC power and will light on 100% illumination when movement object gets close ( sensor distance3-16 meters(can be set by Jumper)), and switch to twilight (20%)or off (0%) when movement object leaves after 5s,30s,90s,3mins(can be set by Jumper);Meanwhile it detects surrounding illumination value, if higher than the setting value (by Jumper, 5lux, 15lux, 50lux, disable), it will not light on even detected movement. It widely used in stair well, corridor, parking lots.

 Feature

◆Adopt PMMA Opal diffuser and uniform illumination

◆Surface mounted installation and large hole (5mm) of terminal block

◆Using high brightness SMD5630 led chips as light source

◆Adopt isolated SAA/CE approved driver

◆Available watt:12w/18w/20w

◆Dimming function : Sensor dimming and Light sensor detect

◆Meet SAA, C-tick and CE requirements

◆3 years warranty

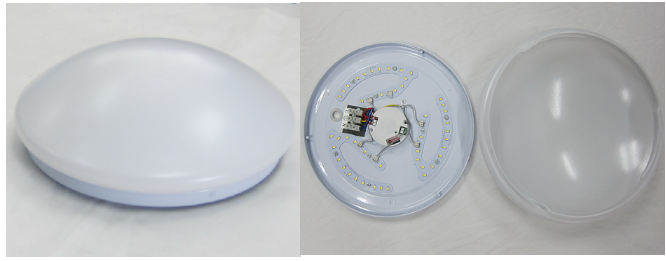

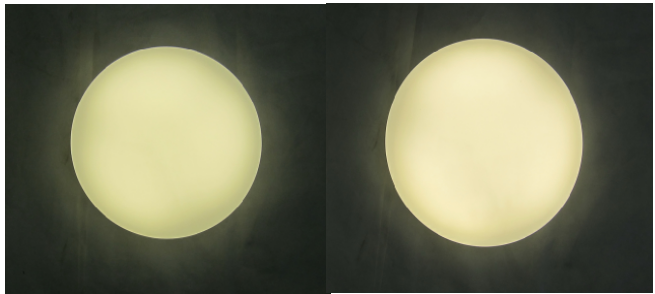

Detail photos

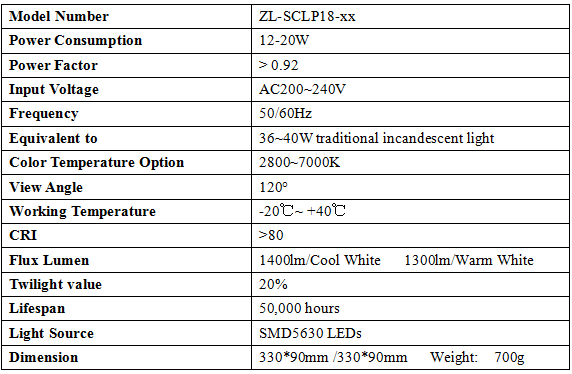

Specification


Installation

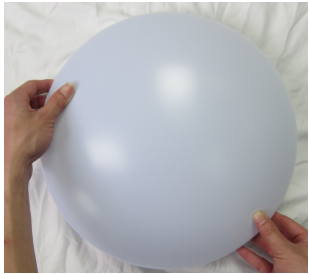

1. Take off the cover from right to left.

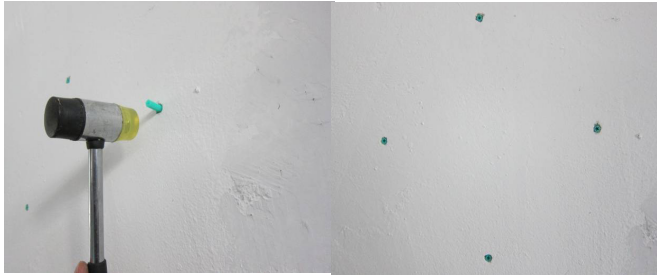

2. Tack plastic studs on the ceiling.

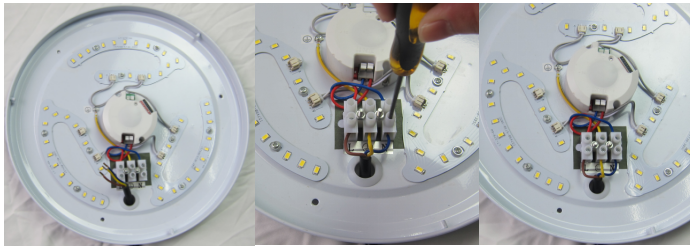

3. Connect the main supply “L”, “N”, “E” wires to terminal block.

4. Check and select the sensor setting dip switch combination to meet your own requirements (see the last part for DIP switch definition).

5. Put the cover back.

5. Turn on the power.

Packing Specification


Box:  37.5x 37.5 x 11cm (1pcs/box)

Carton:  57x 40 x 76cm

Gross Weight:  10.8kg

Net Weight:  6.8kg

Quantity:  10pcs/carton
