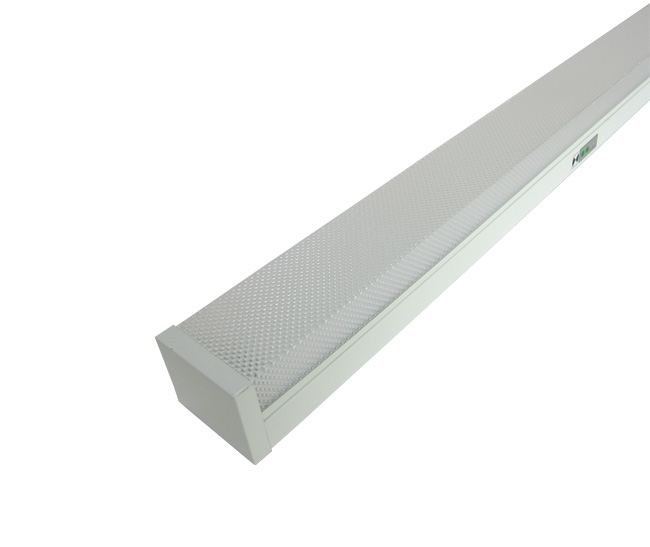

LED prismatic emergency batten light with SMD IP20
◆Adopt Prismatic cover and iron base
◆Surface mounted or hanging installation option
◆Using high brightness SMD2835/5630 led chips as light source
◆Adopt High Temperature Ni-Cd or Ni-Mh battery pack
◆Microwave sensor dimming function
◆Emergency watts adjustable:7 levels , 3.6w-20w
◆Emergency duration :90mins, 2h , 3h ,4h… or  depend on sensor occupy
◆Available in 2ft 20W, 4 ft 36W and 5ft 44W
◆Approved by CE ROHS SAA and C-tick(RCM)and AS2293.3
◆5 years warranty
  • Description
  • Product Specification
  • Package Detail
                                                                        LED prismatic emergency batten light with SMD IP20


Description

The emergency fixture with sensor works under normal supply of AC power, it has 7 adjustable levels of emergency watts(3.6w, 6w, 10w, 12w, 15w, 17w, 20w  set up by SET button ). Emergency time can be 90mins, 2 , 3 ,4 , 5 ,6 hours or customized; when it works with microwave sensor, it will 100% light on when movement object gets close  ( sensor distance is 3-12 meters(can be set by Jumper), and sensor angle is 120-160 degree ), and switch to 20% (default value ) twilight when movement object leaves after 5s,30s,90s,3mins(can be set by Jumper);When AC normal supply shortage, the emergency fixture automatically switch to battery power supply to keep light on. At the same time, microwave sensor still detect object movement, if no movement detected, the lighting will switch to 3.6-20w emergency. This emergency fixture with sensor can also work as led sensor fixture (remove the battery pack) or work as led normal waterproof fixture (remove the battery pack and sensor). It widely used in tunnel, Rail-way station,Metro station, Supermarket, stair well, corridor, evacuation passage, especially parking lots.

Feature

◆Adopt Prismatic cover and iron base

◆Surface mounted or hanging installation option

◆Using high brightness SMD2835/5630 led chips as light source

◆Adopt High Temperature Ni-Cd or Ni-Mh battery pack

◆Microwave sensor dimming function

◆Emergency watts adjustable:7 levels , 3.6w-20w

◆Emergency duration :90mins, 2h , 3h ,4h… or  depend on sensor occupy

◆Available in 2ft 20W, 4 ft 36W and 5ft 44W

◆Approved by CE ROHS SAA and C-tick(RCM)and AS2293.3

◆5 years warranty

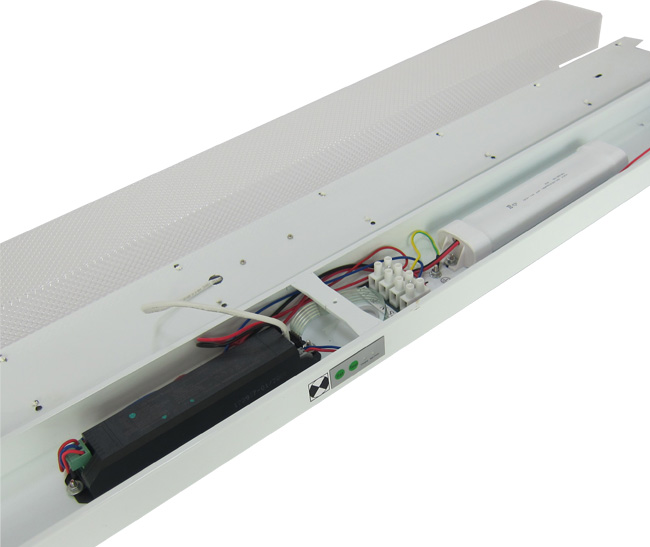

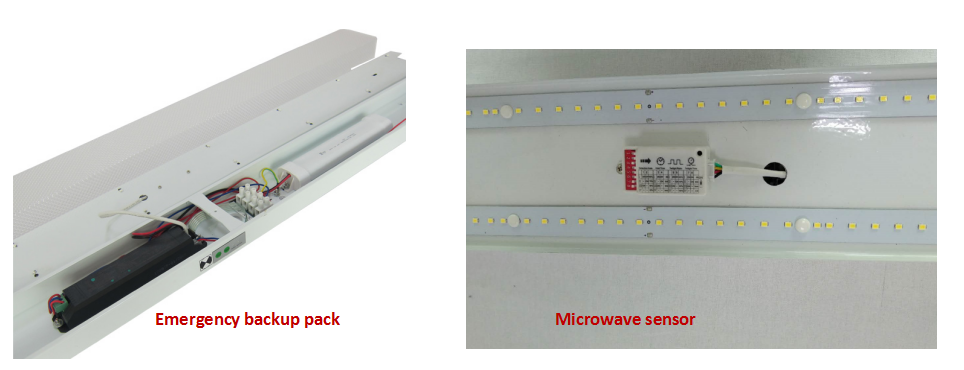

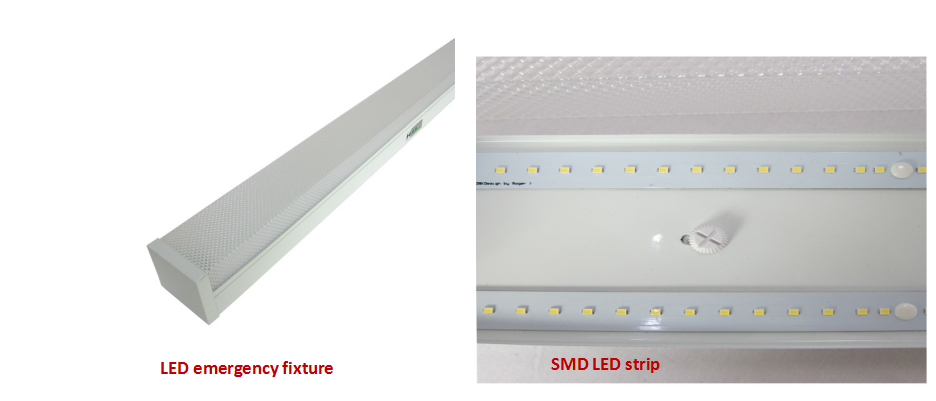

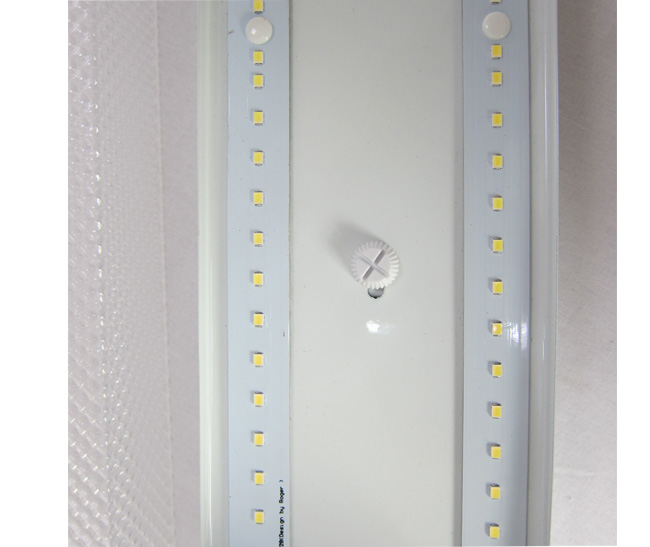

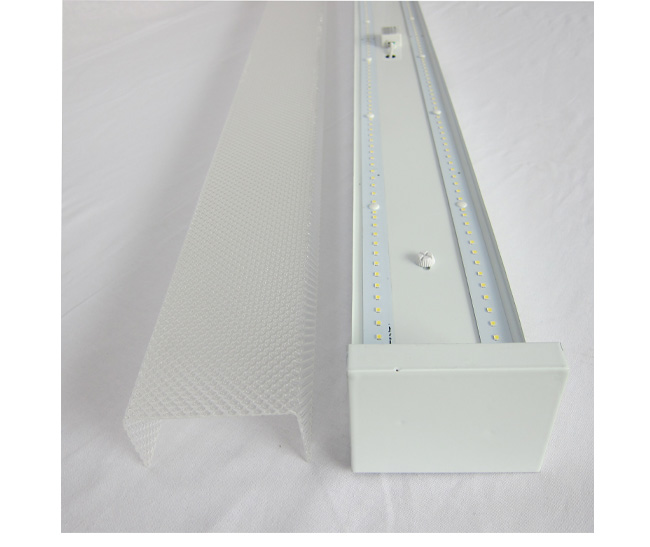

Detailed picture

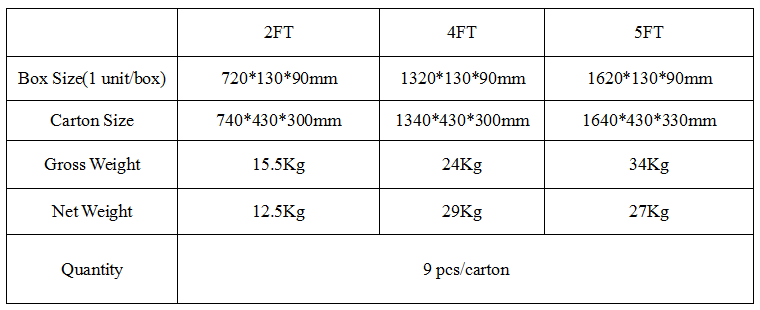

                                                                 Pakage Specification
