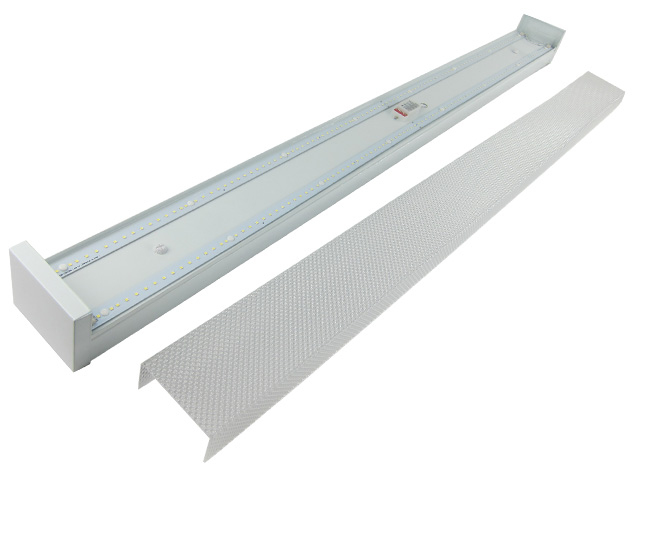

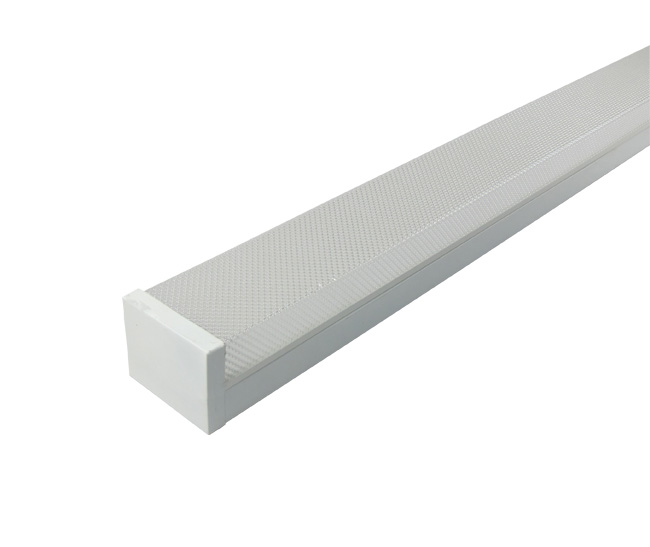

LED prismatic sensor batten light IP20
◆Adopt Prismatic cover and iron base
◆Surface mounted or hanging installation option
◆Uising high brightness SMD2835/5630 led chips as light source
◆Adopt high quality LED constant driver
◆Microwave sensor dimming function
◆Available in 2ft 18-20W, 4 ft 36-40W and 5ft 44-60W
◆Approved CE ROHS SAA and C-tick(RCM)
◆5 years warranty
  • Description
  • Product Specification
  • Package Detail
                  LED prismatic sensor batten light IP20

Description

The prismatic batten fixture with Sensor(SMD) works under normal supply of AC power. when it works with microwave sensor, it will 100% light on when movement object gets close ( sensor distance is 3-16 meters(can be set by Jumper), and sensor angle is 120-160 degree ), and switch to 20% (twilight )or 0%(off ) when movement object leaves after 5s,30s,90s,3mins(can be set by Jumper); The  prismatic batten fixture with Sensor can also work without sensor,like led waterproof standard batten fixture (just remove the sensor). It widely used in tunnel, Rail-way station,Metro station, Supermarket, stair well, corridor, evacuation passage, especially parking lots.

Features

◆Adopt Prismatic cover and iron base

Surface mounted or hanging installation option

Uising high brightness SMD2835/5630 led chips as light source

◆Adopt high quality LED constant driver

Microwave sensor dimming function

Available in 2ft 18-20W, 4 ft 36-40W and 5ft 44-60W

Approved CE ROHS SAA and C-tick(RCM)

5 years warranty

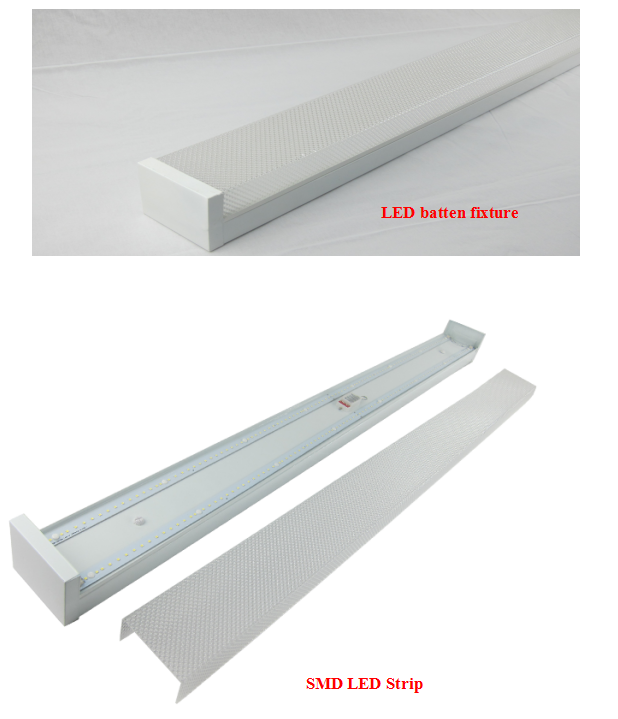

Detailed Photos



Application

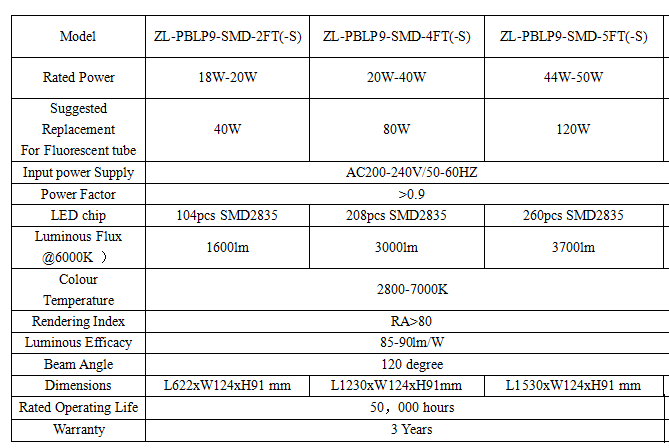

                                         Specification


Sensor Setting:

The sensor is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.  The sensor allows energy saving without compromising comfort. When used in combination with our LED fitting, Fitting can achieve several steps dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.



Features:

Automatic dimming when used in combination with our LED fitting(specify models).

 Built-in adjustable twilight ratio..

 Detection area, time delay and twilight ratio can be set via DIP switch.

 Wide detection area, range up to 16m in diameter.



2-step dimming function (Match with fitting)

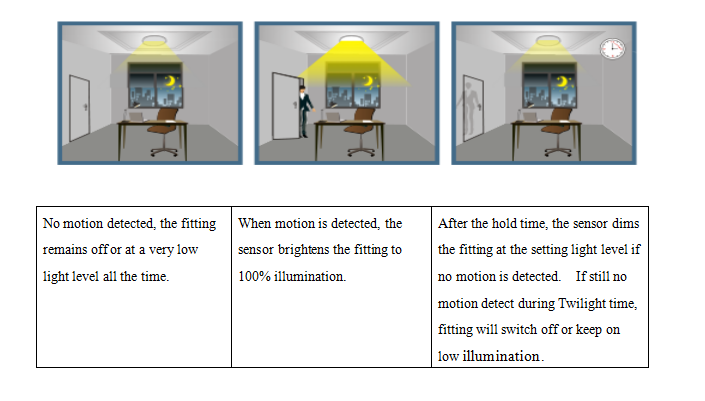

The sensor can provide 2-step dimming function, 100 %--->twilight (20%)—>switch off (0% or keep on low illumination). They are particularly suitable for use in corridors, stairwells and underground passages where low light levels are maintained until motion is detected.

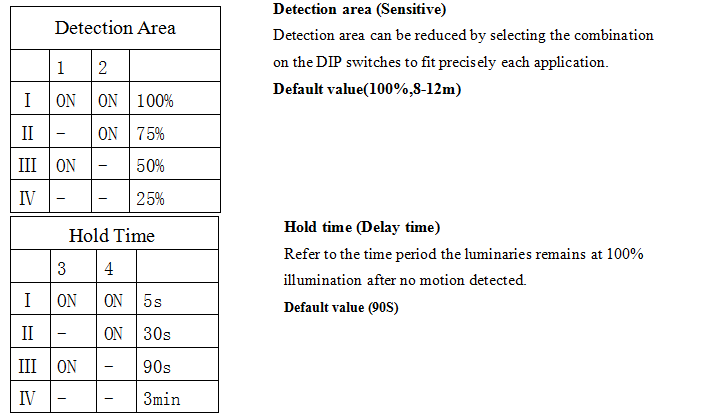

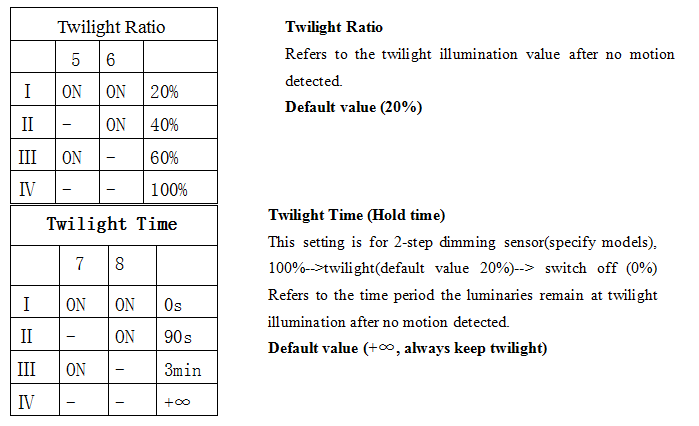

DIP Switch Setting

By selecting the combination on the DIP switch, sensor data can be precisely set for each specific application.






Package
