LED sensor batten light IP65
◆Adopt high-grade PC base and PC cover fitting
◆good quality seal for better waterproof, IP65 protection rate
◆Surface mounted or hanging installation option
◆Using high brightness SMD2835/5630 led chips as light source
◆High luminous efficiency 100-110 lm/w
◆Adopt high quality LED constant driver
◆Microwave sensor dimming function
◆Available in 2ft 18-20W, 4 ft 36-40W and 5ft 44-60W
◆Approved CE ROHS SAA and C-tick(RCM)
◆3 years warranty
  • Description
  • Product Specification
  • Package Detail

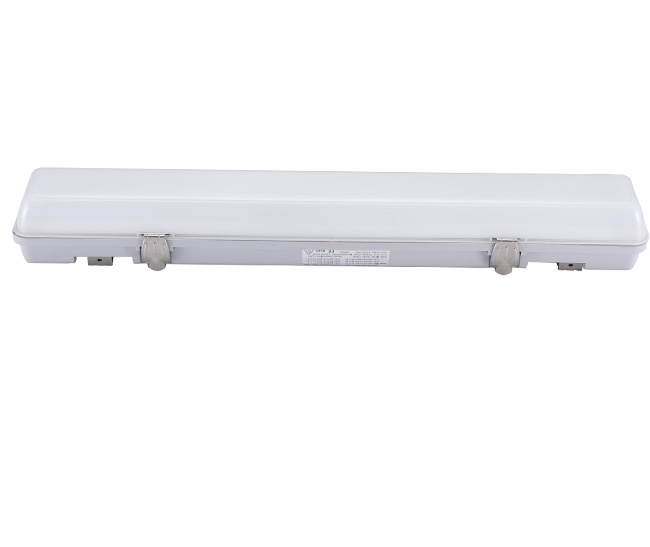

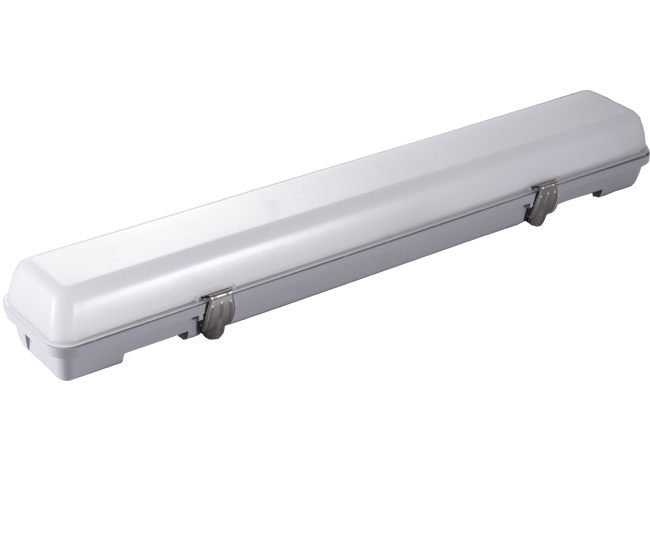

                                                                 LED Sensor Batten Light IP65

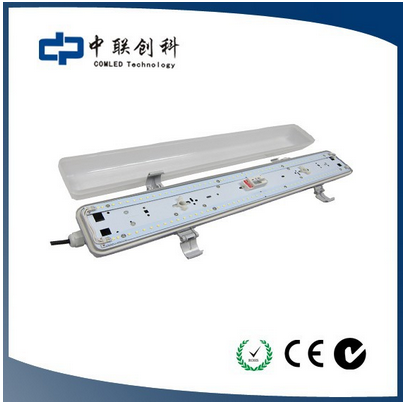

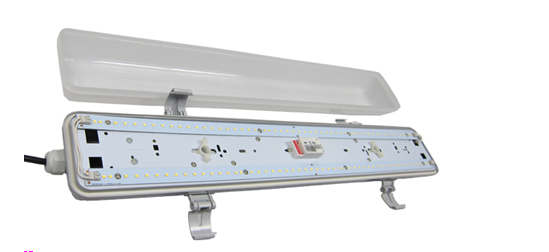

led waterproof sensor light.PNG                              ● Microwave sensor dimming function

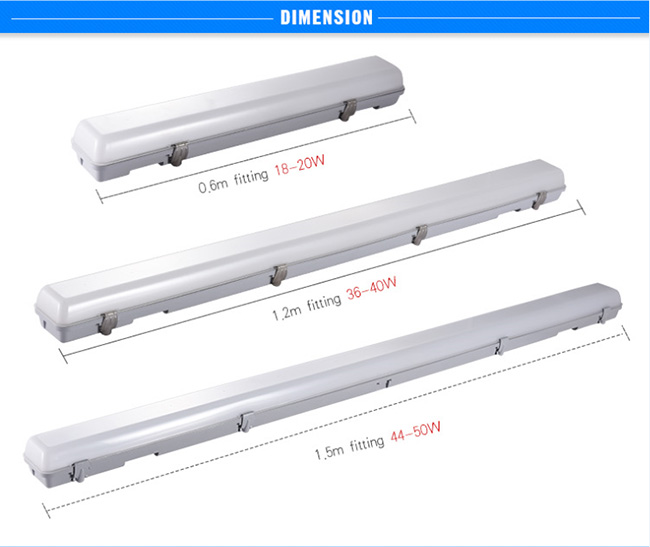

                          ● 2ft 18-20W, 4ft 36-40W, 5ft 44-50W


                           ●  High luminous efficiency 100-110 lm/w


                           ●Using high brightness SMD2835/5730 led chips as light source


                           ●Surface mounted or hanging installation option


                           ●Approved by CE ROHS SAA and C-tick(RCM)


                           ●3 years warranty

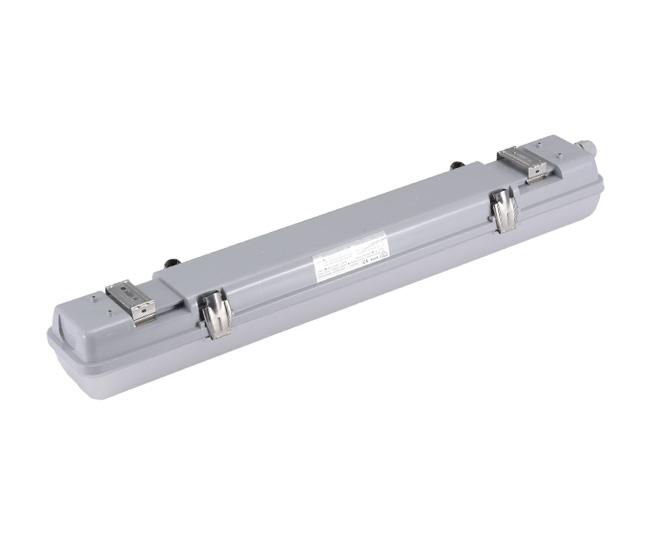

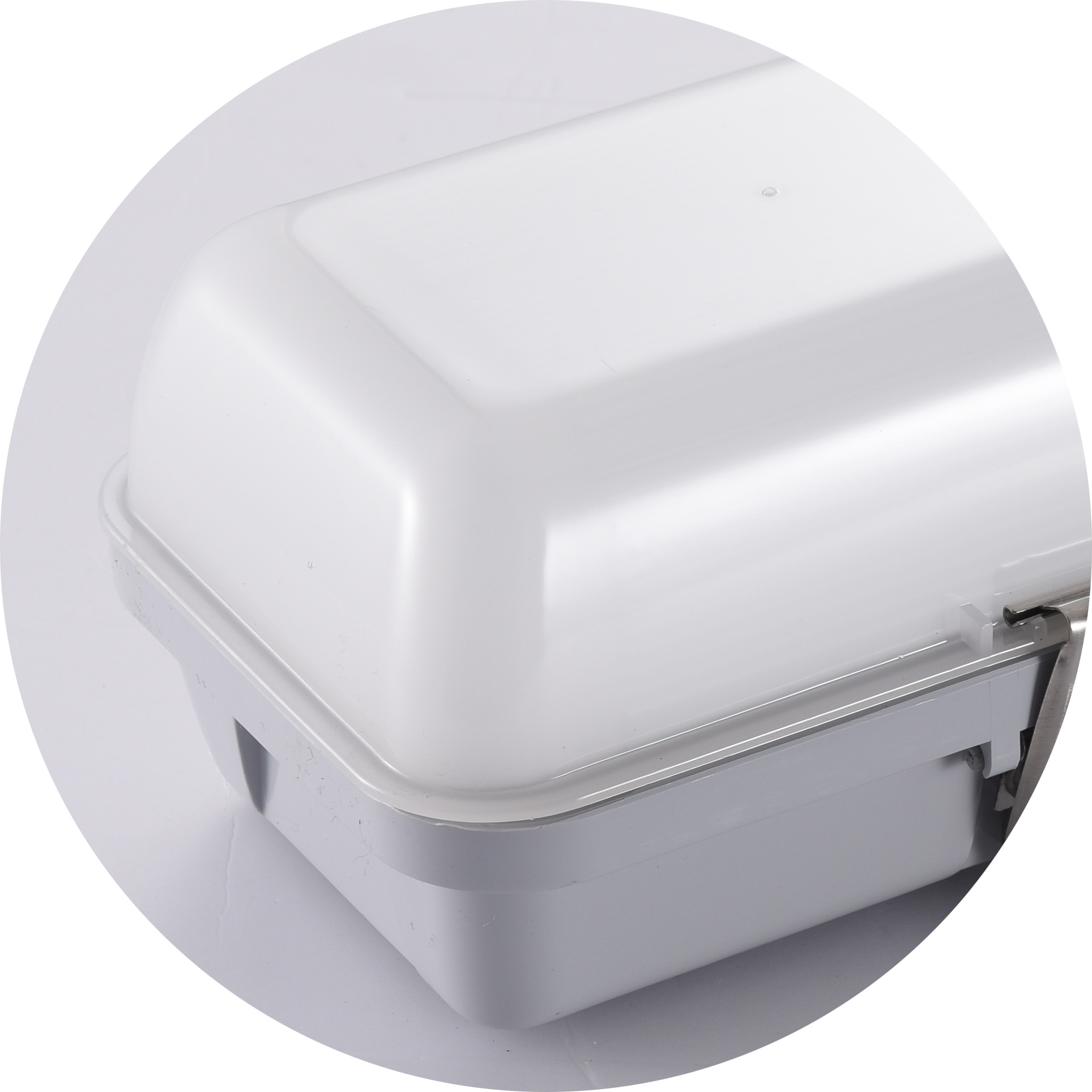

PC cover and PC base

LED cover and base.jpg
●Adopt high diffusion milky PC cover

 ●PC cover contains Anti-UV material

 ●lumen transmission up to 90%

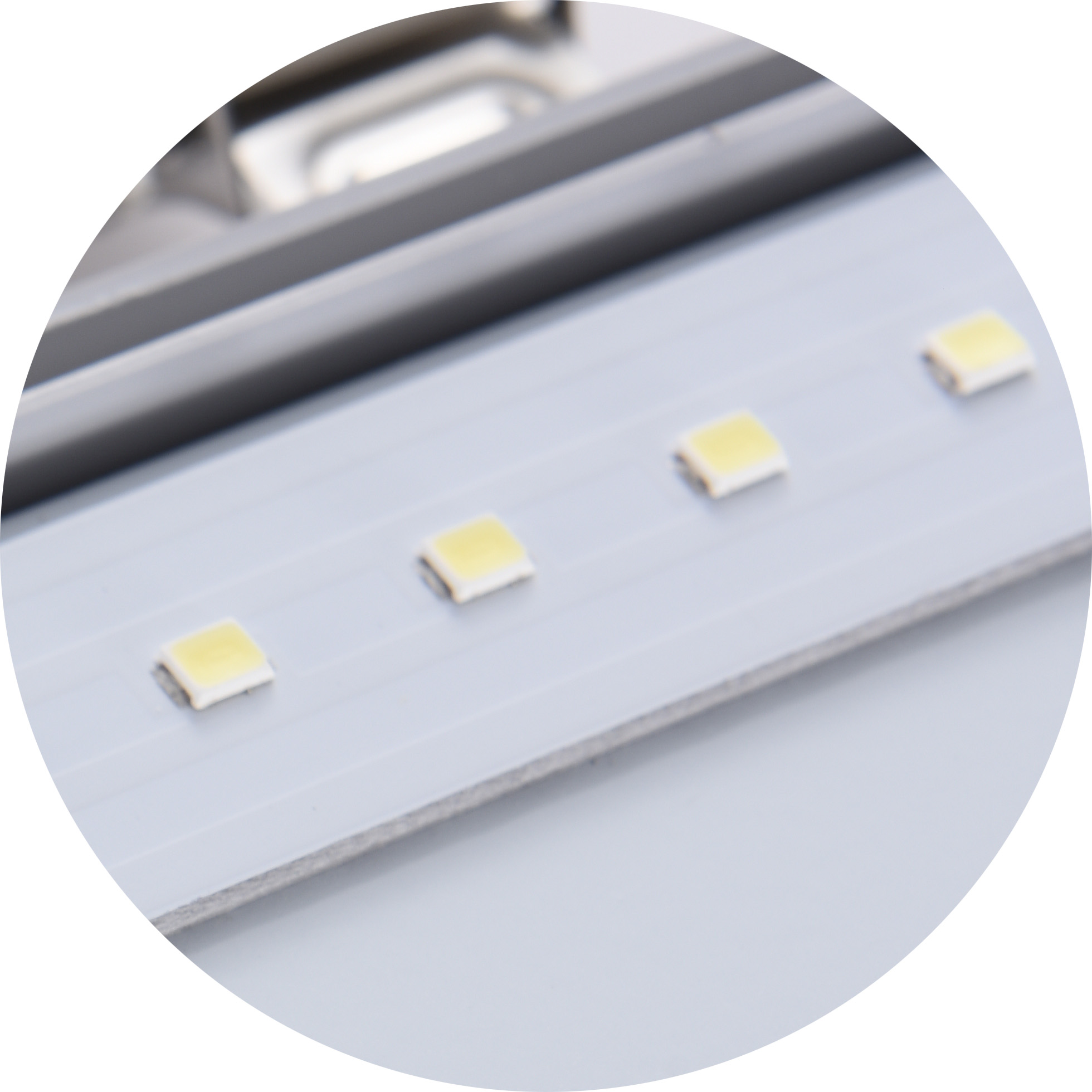

LED chip.jpg
                                             LED chips

                                            ● High brightness LED chips and color rendering index

                                            ● Adopt high brightness 190lm/w LED chips (approved by LM-80)

                                            ● Low light degration, high CRI>82

                                            ● High luminous efficiency 100-110lm/w

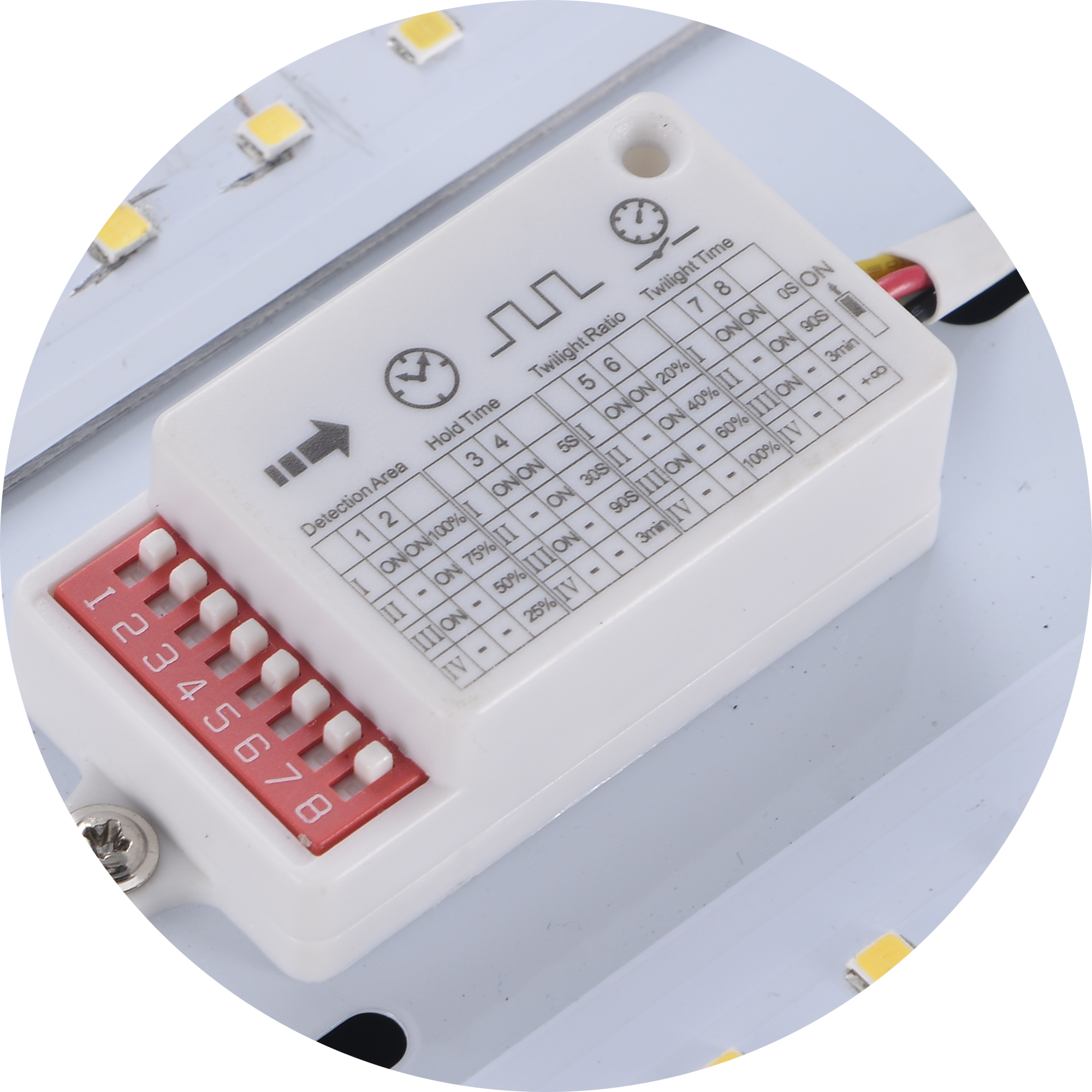

_DSC7213.jpgMotion sensor function


● Microwave sensor

● Automatic dimming when used in combination with our LED luminaries (specify models).

●  Built-in adjustable twilight ratio.

● Detection area, time delay and twilight ratio can be set via DIP switch.

● Wide detection area, range up to 16m in diameter.

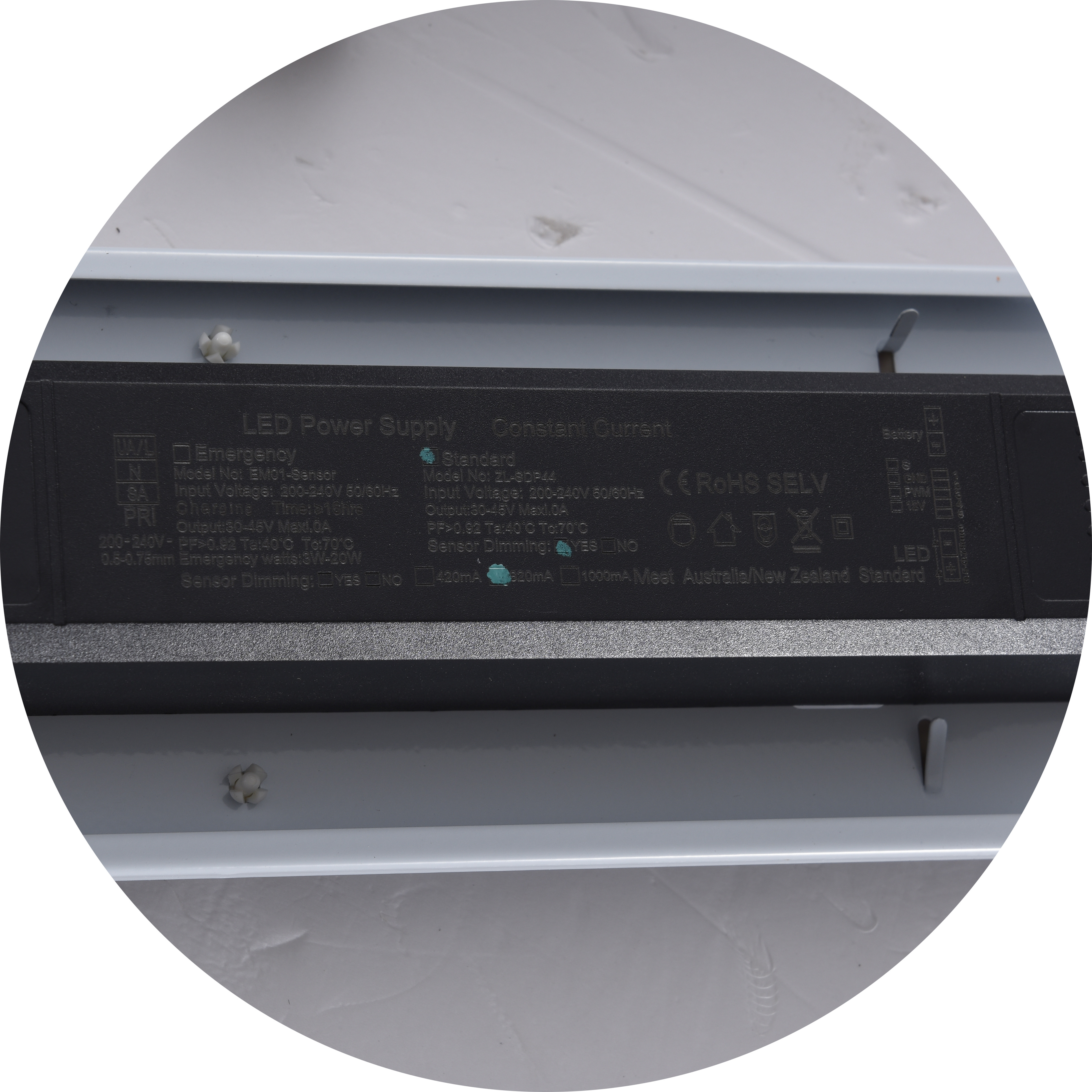

                                                                                                   LED dirver

                                                                                                   ● Isolate constant current driver

                                                                                                   ● IEC approved driver

                                                                                                   ●60 W , PF >0.9

                                                                                                   ●larger toleran, long lifespan

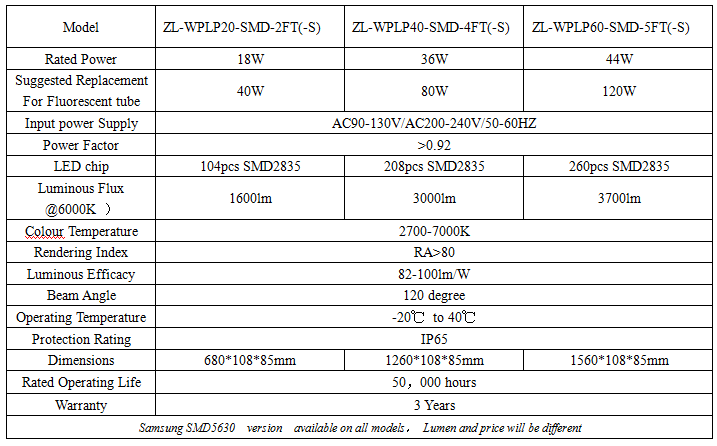

                                                                                                     Specification

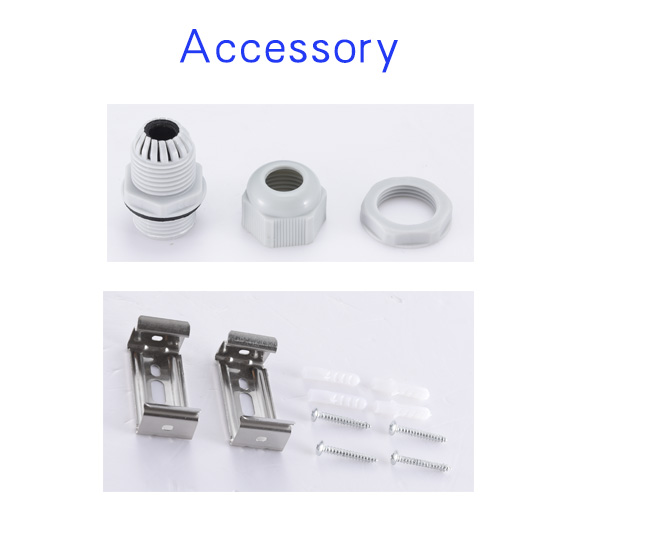

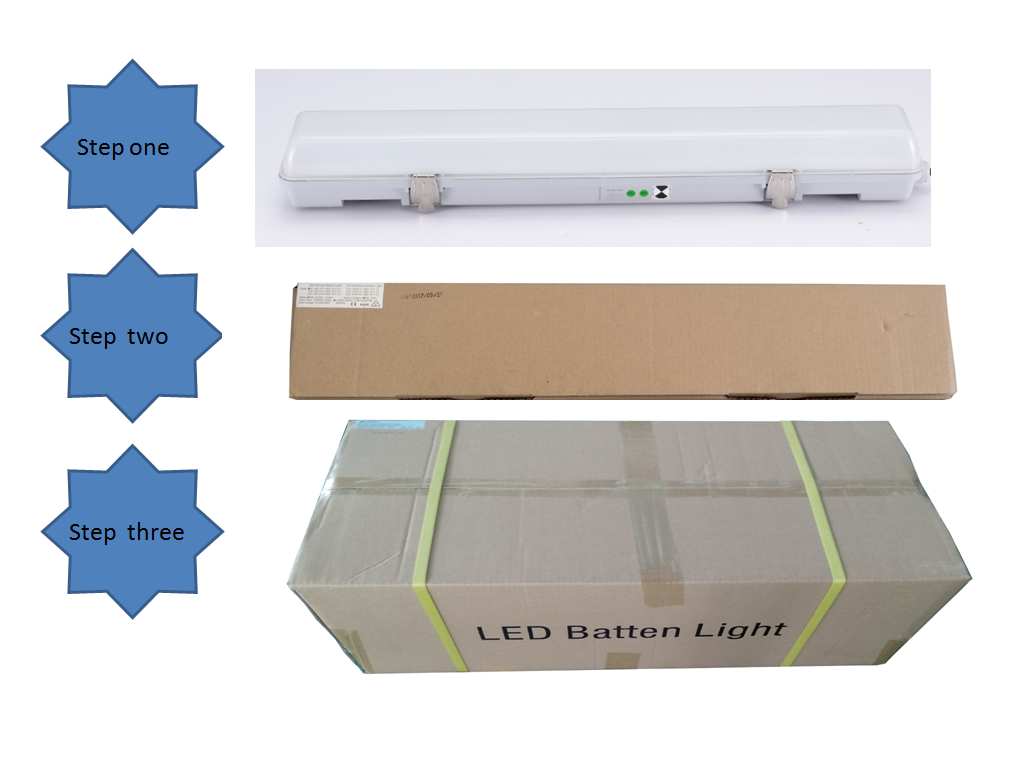

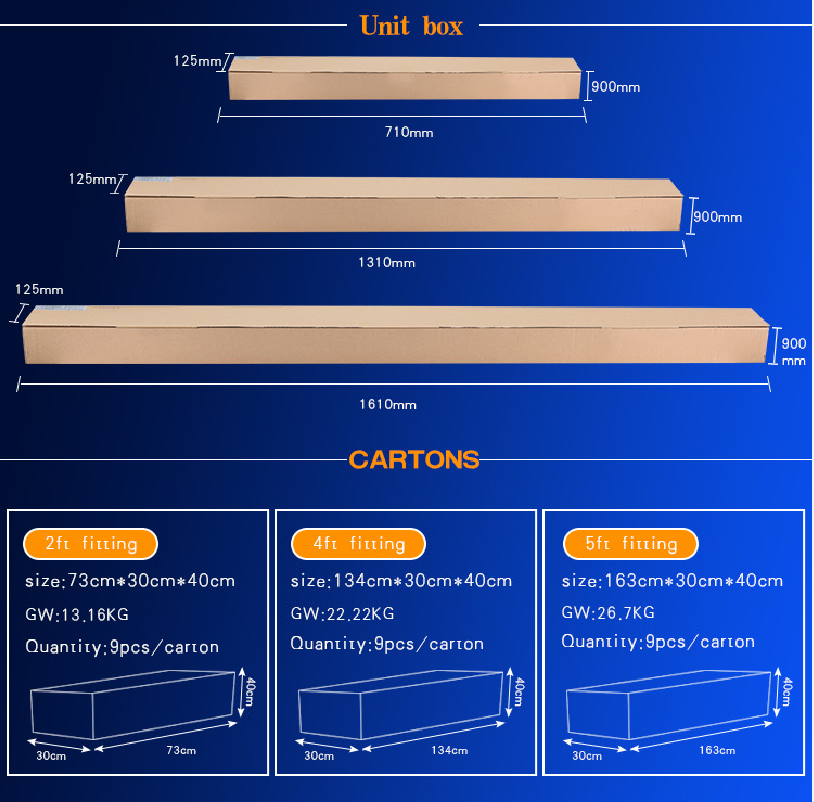

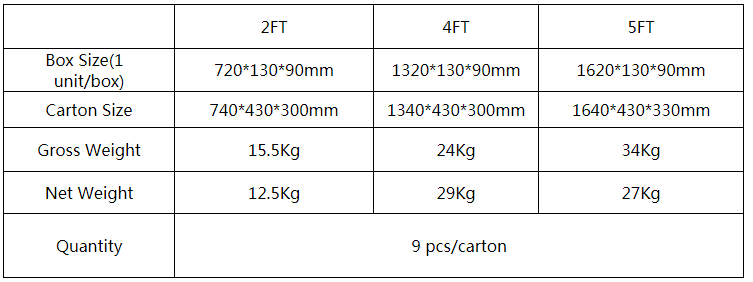

                                                                                                                                                Package Specification
